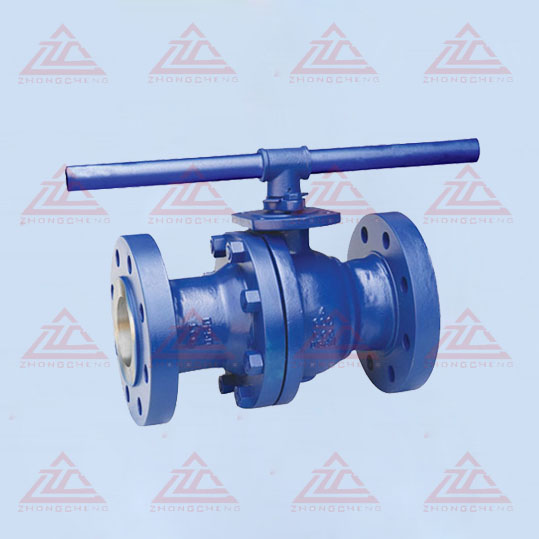

Q41F Stainless Steel Ball Valve

Q41F stainless steel ball valve are widely used in oil, gas, coal and ore mining, refining and processing and pipeline transportation systems; in chemical products, medicine and food production systems; in hydropower, thermal power and nuclear power power power production systems; in urban and industrial enterprises water supply and drainage, heating and gas supply systems; in farmland drainage and irrigation systems; in metallurgical production systems An important mechanical product closely related to people's life. The ball valve is sealed in all kinds of pipeline systems and is used to cut off or connect the medium flow, so that the medium can be transported to each designated point according to the predetermined procedure.


Size:	1/2"-8"
Material:	WCB Stainless steel
Operation type :	Lever Gear box Pneumatic actuator Electric actuator
Availability:



Inquire PDF Export

Model:
ZCQ41F
Brand:
ZC
Code:
ZCBV

Product Description

Product Description

Structural characteristics

(1) Small fluid resistance, full size of the ball valve is basically no flow resistance.
(2) Simple structure, small volume and light weight.
(3) Compact.It has two sealing surface, and the current ball valve sealing material using plastic, good sealing, can achieve sealing.It has also been used in vacuum systems.
(4) Easy to operate, fast on and off, from full open to full close only rotation 90°, convenient for remote control.
(5) Easy maintenance, simple ball valve structure, sealing ring is generally active, disassembly and replacement are relatively convenient.
(6) When fully open or fully closed, the sealing surface of the ball and seat is isolated from the medium, which will not cause valve sealing when passing through.

Execution standard

Design and manufacturing: API 6D, API 608, BS 5351, GB/T 12237
Structure length: ASME B 16.10, GB/T 12221
Connecting flange: JB/T 79.1~79.4, ASME B 16.5, HG/T 20615, HG/T 20592, JIS B2238, GB/T 9113.1~9113.4
Test and inspection: API 598, GB/T 13927, GB/T 26480, JB/T9092, ISO 5208

Performance parameter

Nominal diameter: DN15~200mm
Nominal pressure: 1.6~10MPa
Applicable temperature: -196~600℃
Applicable medium: water, oil, steam, partial acid, alkali, etc
Driving mode: manual, electric, pneumatic

Product Dimensions

PN1.6MPa

DN(mm)	15	20	25	32	40	50	65	80	100	125	150	200
L	130	130	140	165	165	203	222	241	305	356	394	457
H	59	63	75	85	95	107	142	152	178	252	272	342
W	130	130	160	180	230	230	400	400	650	1050	1050	1410
WT(kg)	2.5	3	5	6	7	10	15	19	33	58	93	160

PN2.5MPa

DN(mm)	15	20	25	32	40	50	65	80	100	125	150	200
L	130	150	160	180	200	230	290	310	350	400	480	600
H	59	63	75	97	107	142	152	178	252	272	342	345
W	130	130	160	230	230	400	400	700	1100	1100	1500	1500
WT(kg)	3	4	5	10	14	20	25	30	40	65	85	153

PN4.0MPa

DN(mm)	15	20	25	32	40	50	65	80	100	125	150	200
L	140	152	165	178	190	216	241	283	305	381	403	502
H	59	63	75	97	107	142	152	178	252	272	342	345
W	130	130	160	230	230	400	400	700	1100	1100	1500	1500
WT(kg)	3	4	5	10	14	20	25	50	70	80	101	216

PN6.4MPa

DN(mm)	15	20	25	32	40	50	65	80	100	125	150	200
L	165	190	216	229	241	292	330	356	432	508	559	660
H	59	63	75	97	107	142	152	178	252	272	305	398
W	130	130	160	230	230	400	400	700	1000	1100	1500	1800
WT(kg)	-	-	-	-	-	34	44	60	87	125	216	346

PN10.0MPa

DN(mm)	15	20	25	32	40	50	65	80	100	125	150	200
L	165	190	216	229	241	292	330	356	432	508	559	660
H	59	63	75	97	107	142	152	178	252	272	305	398
W	130	130	160	230	230	400	400	700	1000	1100	1500	1800
WT(kg)	-	-	-	-	28	41	54	72	105	152	262	428
