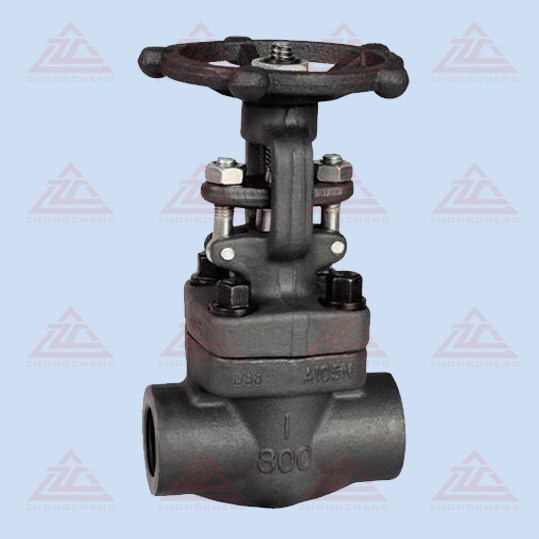

Forged Steel Gate Valve

A compact but extremely sturdy design for high pressure-temperature service.
Solid CoCr alloy wedge (optional) ensures low friction and long service life.
For Class 1500 valves and for steam service, seats are seal-welded to the body.
Packing rings are precompressed to 4000 psi to provide a high integrity seal.
For welded bonnet valves, the bonnet is threaded in and torqued to an engineered torque value and the body bonnet joint is strength-welded, offering double protection against leakage. (Body/bonnet threads and strength-weld).
Fully guided wedge reduces wear on seating surfaces.
Repairable 2-piece stem drive.
Parallel slide gate valves also available.
Optional design available with double packing, leak-off connection, live-loading and a packing blowout for easy removal of old packing.
